GD series high power laser cutting machine

GD series high power laser cutting machine

$0.00
$0.00
Sale Sold out

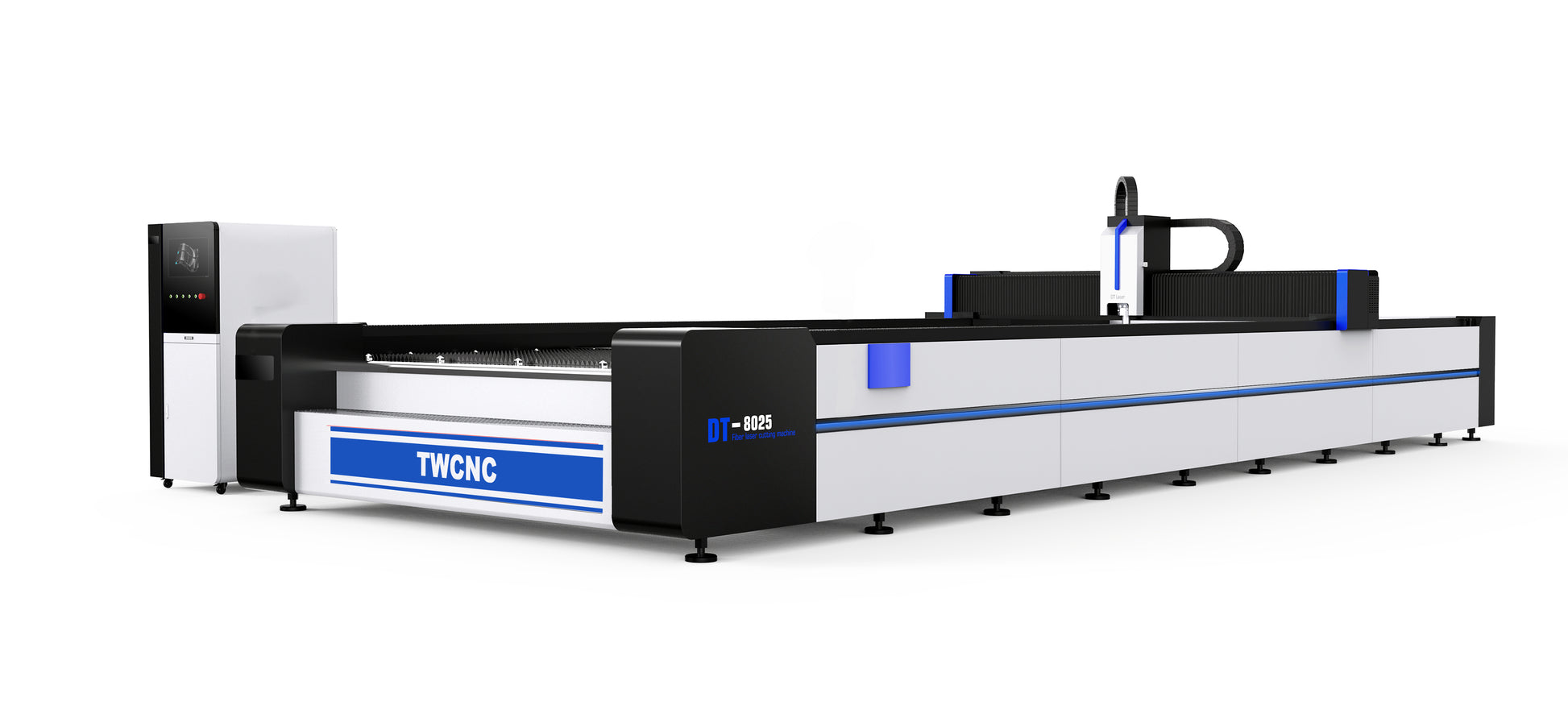

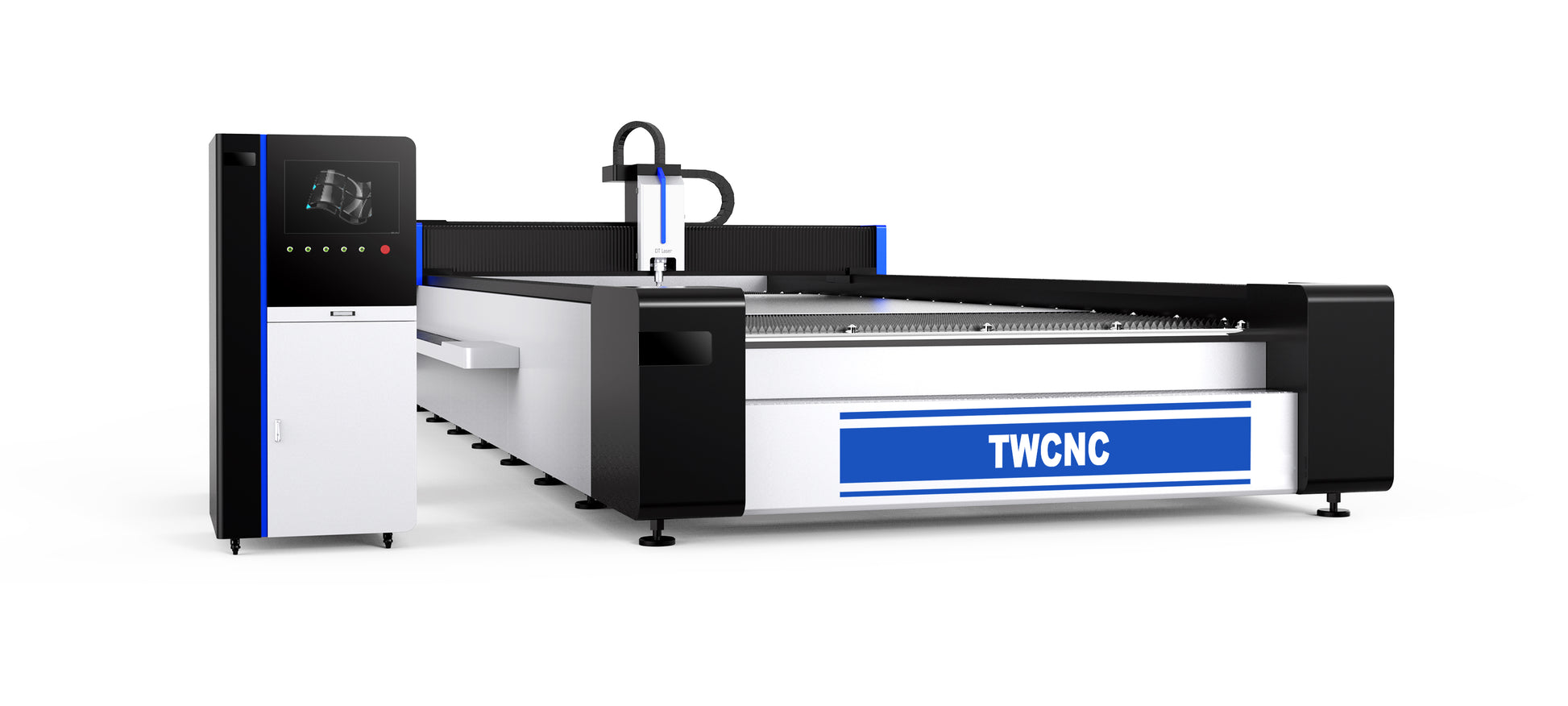

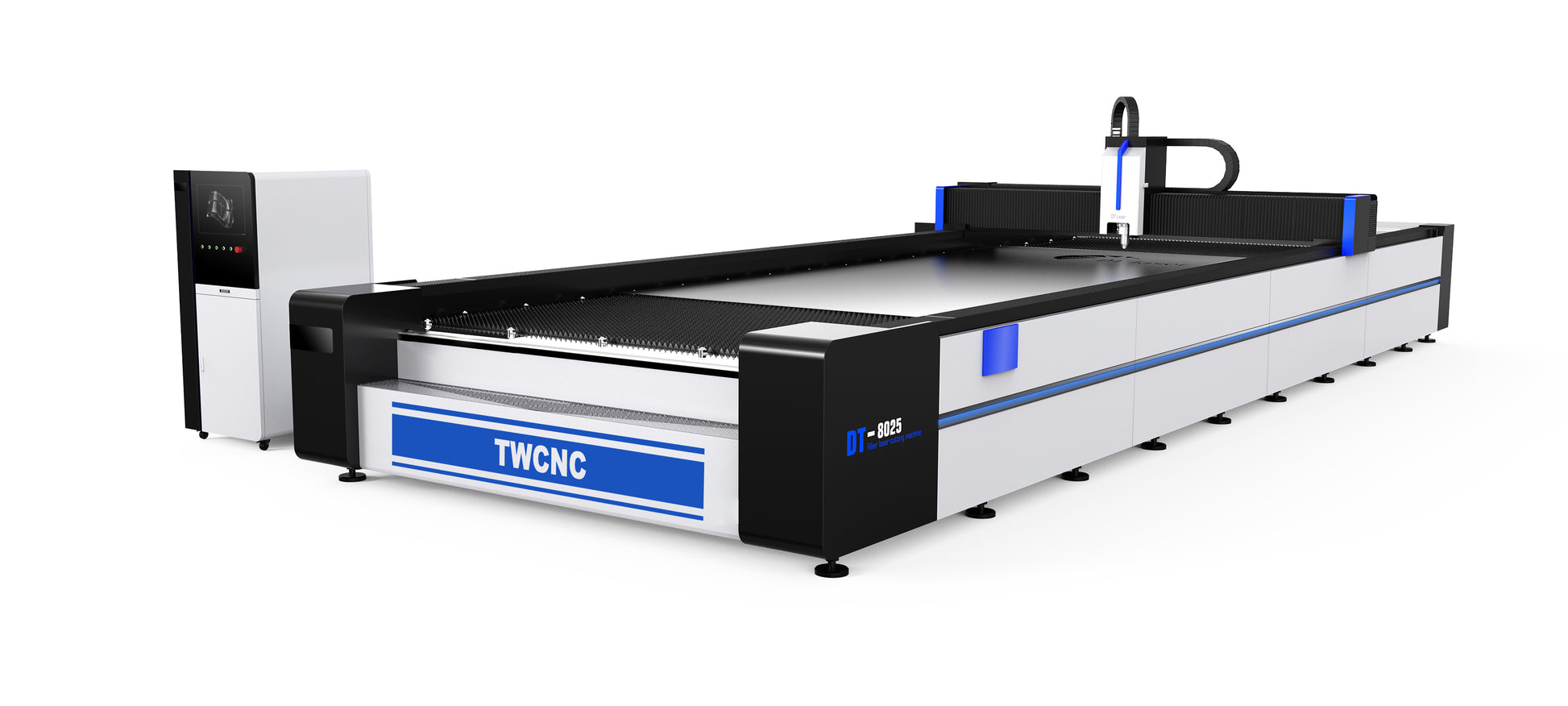

GD Fiber Laser Cutting Machine for High Power 30000W Fiber Laser Cutting stainless steel
Assemble their lasers cutting machine to the strictest quality standards with nothing but world class components to ensure lasting quality at an attractive price.
Available in five sizes and with laser powers ranging from 1,000W to 30,000W fiber Laser.
The following elements are included:
Laser Cutting Head: Raytools laser cutting head;Precitec Cutting head
CNC Controller: CypCut Fscut 2000 CNC System; HYPCUT Touch FSCUT8000

Model
GD series
Working Area
3000X1500mm
Laser Type
Raycus/MAX/IPG Fiber laser
Laser Power
1000W-30000W
Laser head
Raytools/BOCI/Piecitec laser head
Cutting Speed
0-15m/min
Laser Wavelength
1060 nm
Positioning Accuracy
≤ ±0.03mm/m
Re-positioning Accuracy
≤±0.02mm/m
Max Cutting Speed
0-15m/min(depending on material and thickness)
Power Supply Rated Voltage
3-phase 380V/50Hz
Working Table
Serrate working platform
Transmission system
Taiwan TBI screw transmission
Water Cooling System
Industry water chiller
Machine Weight
4000-8000kg
Machine Dimension
4200x2180x2150mm
Remark
Automatic exchange worktable, cover(option)
View full details

We provide customers with the following services

MAIN AFTER-SALES SERVICE :

All our laser equipment is provided with 24 months warranty. We TWCNC offers free maintenance or replacement service if something is wrong with the equipment under warranty. If it is out of warranty,We TWCNC will send engineers to your factory as soon as possible and only charge the cost of parts.

Installation and debugging & Training

Technicians can be sent to the factory for training (free of service fee for the first time). Customers only need to provide accommodation for engineers.
Free of charge for training within warranty. But customers need to take charge of the cost for accommodation, air tickets, visa fee.

24H online service

TWCNC promises to provide 7×24 hours service after signing the contract. Respond within 1 hour after receiving the notification, provide solutions within 8 hours for general faults, and provide solutions for complex problems within 24 hours.

Remote diagnosis

We TWCNC can check the running status of the customer's laser cutter through our remote maintenance system. Our technicians can perform troubleshooting via remote access instead of on-site diagnosis and maintenance, saving you a lot of time.
